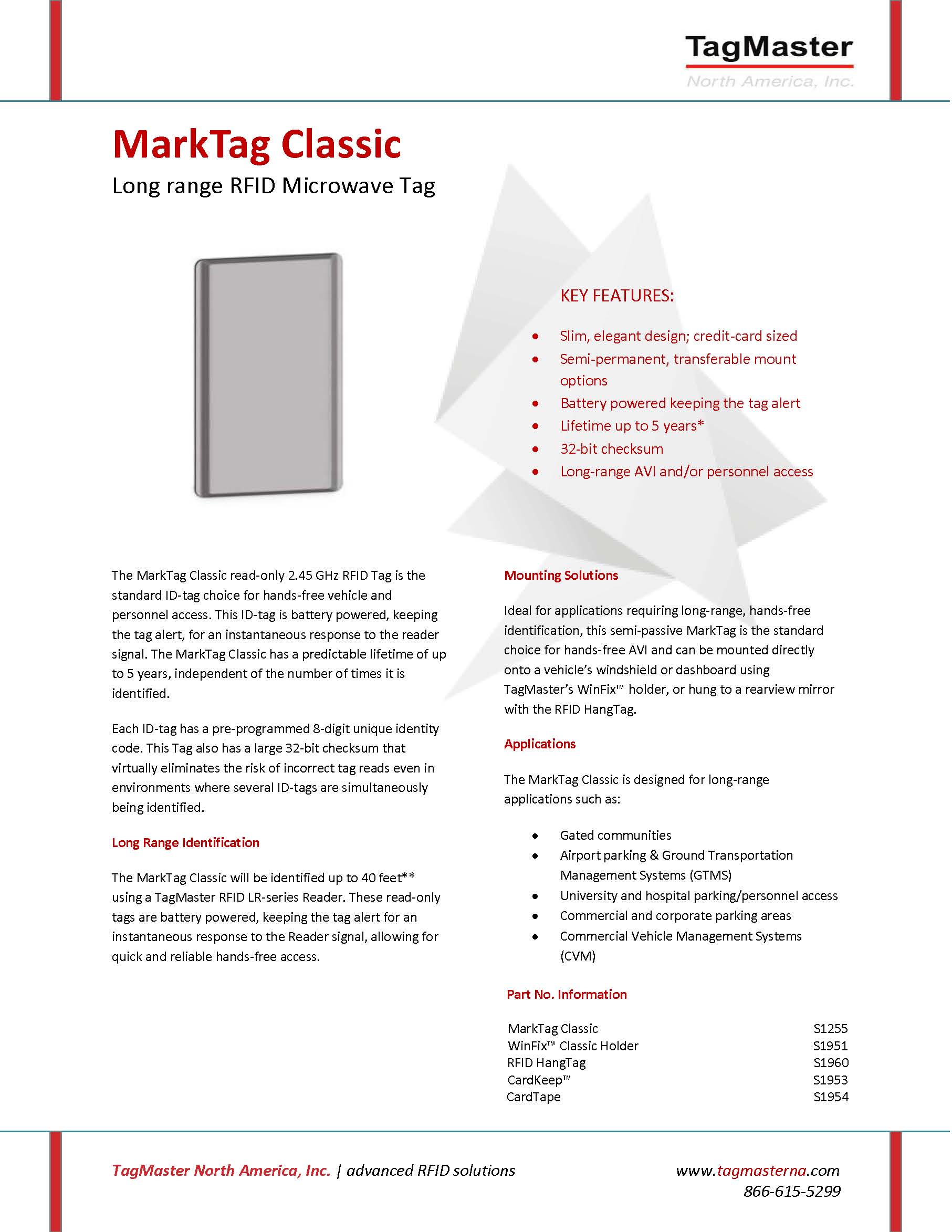

S1255 MarkTag Classic

TagMaster North America‘s S1255 MarkTag Classic read-only 2.45 GHz RFID Tag is the standard choice for hands-free vehicle and personnel access. This ID-Tag is battery powered, keeping the Tag alert, for an instantaneous response to the Reader signal. The MarkTag Classic has a predictable lifetime of up to 5 years, independent of the number of times it is identified.

Each ID-Tag has a pre-programmed 8-digit unique identity code. The MarkTag also has a large 32-bit checksum that virtually eliminates the risk of incorrect tag reads, even in multi-tag environments.

Key Features

• Slim, elegant design; credit-card sized
• Semi-permanent, transferable mount options
• Battery powered- Tag always awake
• Lifetime up to 5 years*
• 32-bit checksum
• Long-range AVI and/or personnel access

Long Range Identification

The MarkTag Classic will be identified up to 33 feet** using a TagMaster RFID LR-series Reader. The tag emits no radio signals, it only reflects a modulated
response to a reader request. These read-only tags are battery powered, keeping the tag alert for an instantaneous response to the Reader signal, allowing for quick and reliable hands-free access. This Tag has a predictable lifetime of up to 5 years* (independent of the number of times it is identified).

Mounting Solutions

Ideal for applications requiring long-range, hands-free identification, the semi-passive MarkTag is the standard choice for hands-free AVI and can be mounted directly onto a vehicle’s windshield using TagMaster’s WinFix™ holder or using other RFID accessories from TagMaster North America.

Applications

The MarkTag Classic is designed for long-range applications such as:

• Gated communities
• Airport parking & Ground Transportation Management Systems (GTMS)
• University and Hospital parking/personnel access
• Commercial and Corporate parking areas
• Commercial Vehicle Management Systems (CVM)

*Depends on external environment temperature and handling of tag

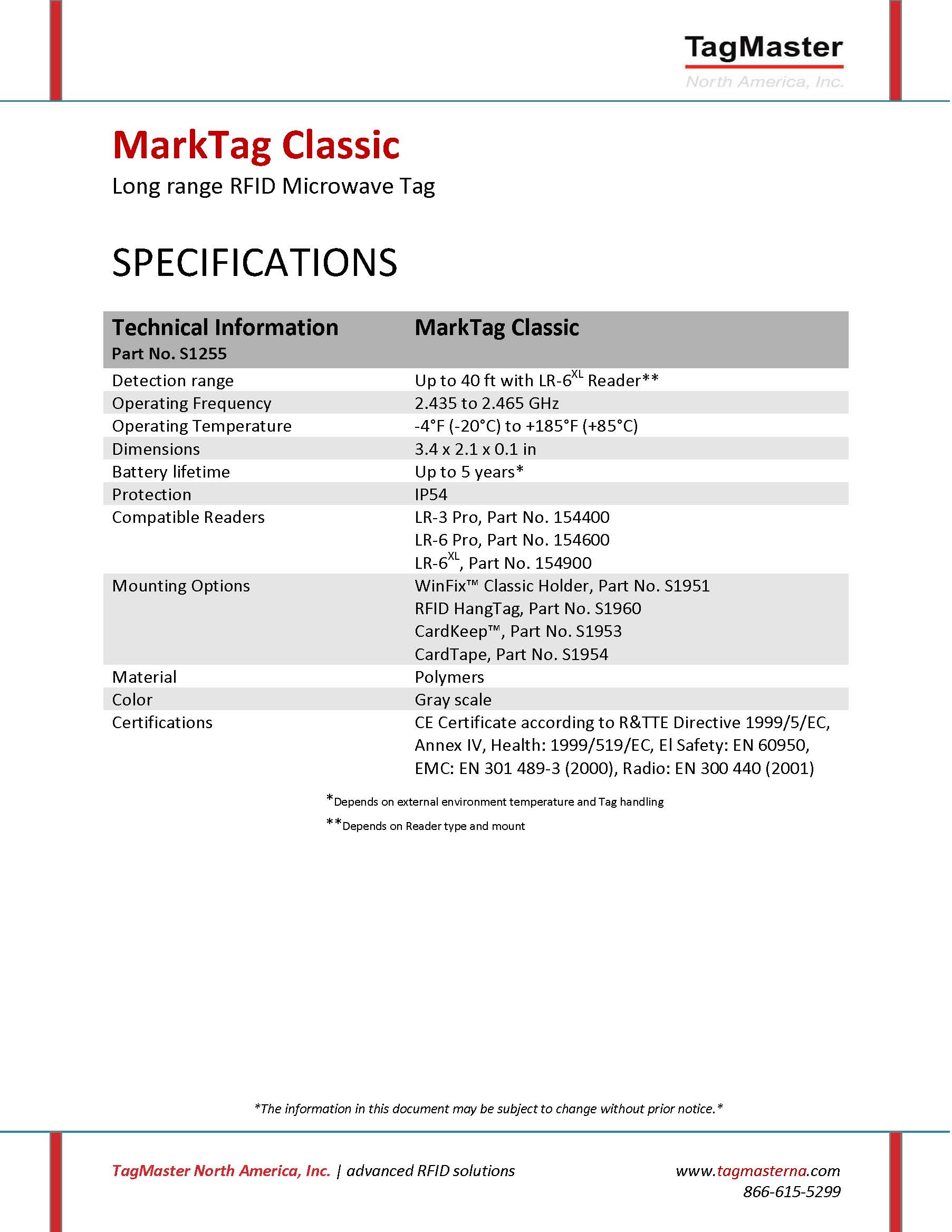

Datasheet
